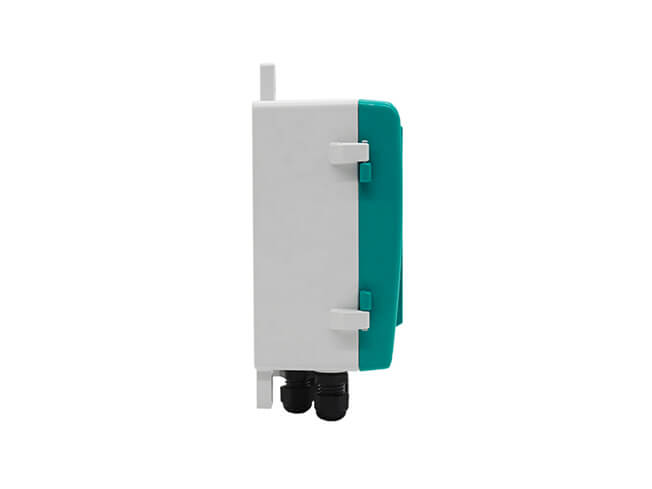

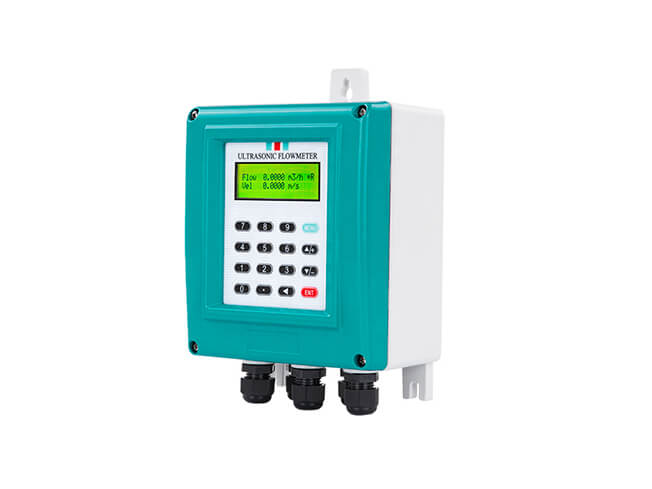

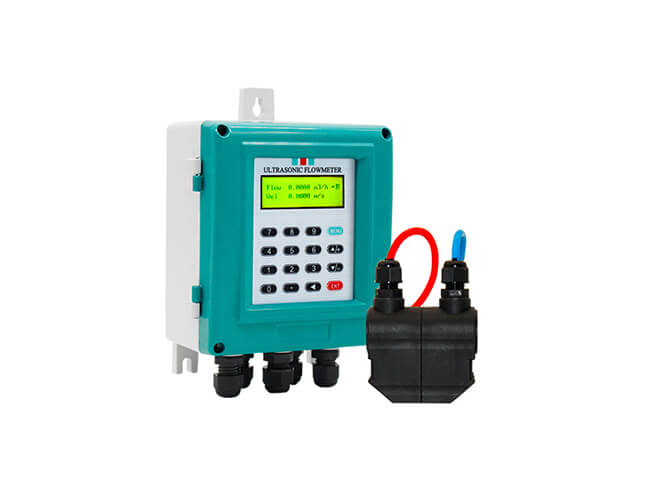

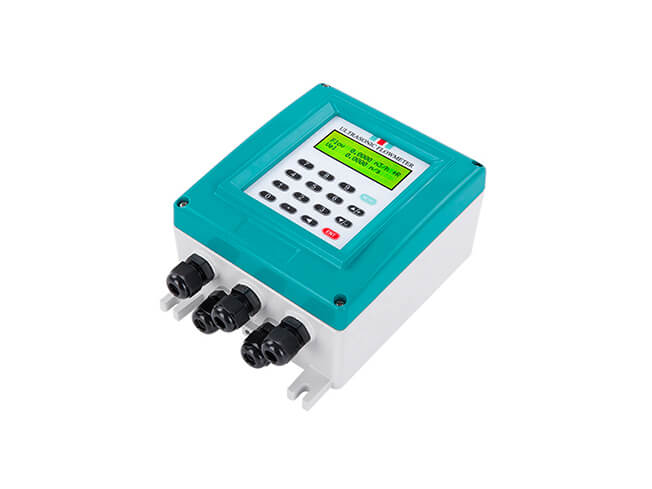

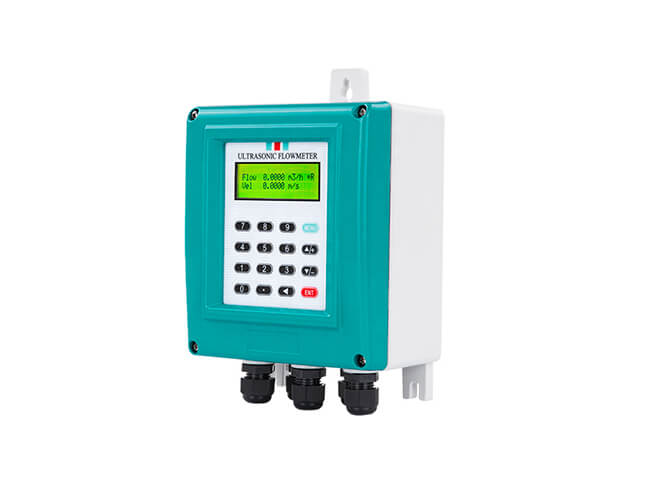

Wall Mounted Ultrasonic Flow Meter
Size: DN25-DN1200mm (1”~48”)
Pressure Rating: 0.6-1.6Mpa
Flow Range: ±0.03m/s ~±5m/s
Accuracy: ±1% of measured value
Power Supply: DC10-36V
Design Standard: IP65, IP68
Inspection Standard: IP65, IP68
Application medium: Water/Liquid
Temperature: -40℃~80℃ (standard)
Applied projects: Widely used for water supply, non conductive liquids such as distilled water, food oil, light oil, boiler fuel oil engine for diesel measurement, and air conditioner system to measure the flow & heat, food and beverage, pharmaceuticals, ballast water, fuel consumption and other processes on-board ships, etc.
Introduction:

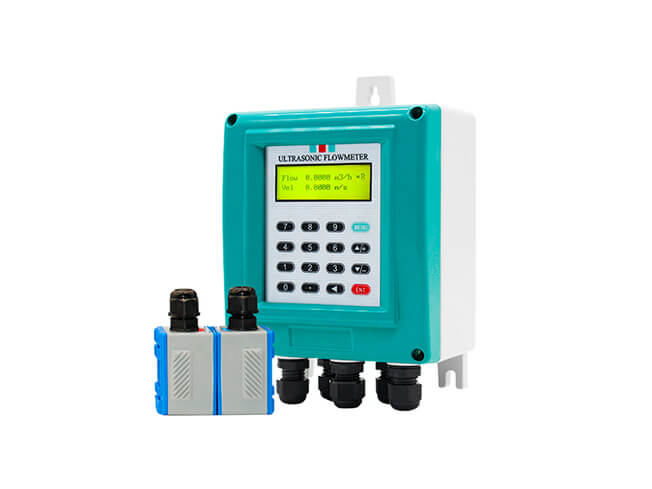

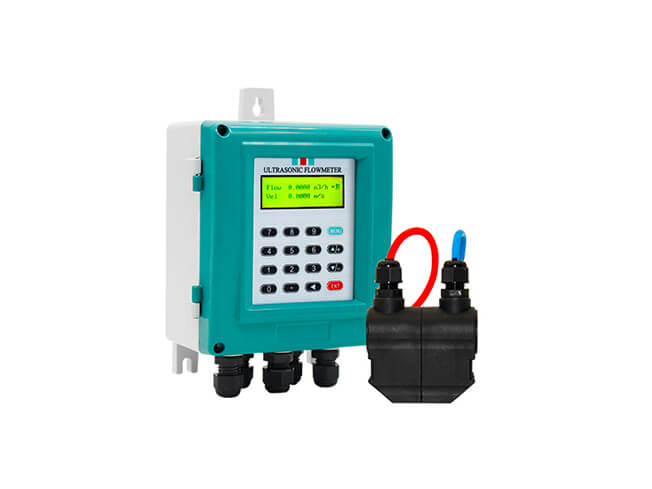

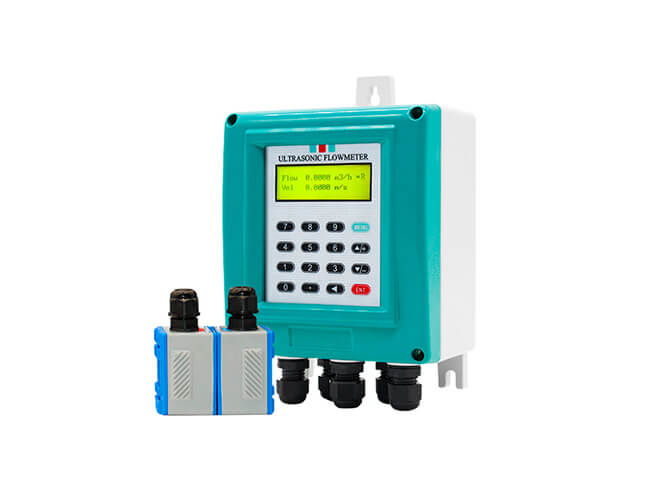

QT502 ultrasonic flow meter is a wall-mount, clamp-on or insertion type ultrasonic flow meter using transit-time technology. Both Clamp on type sensors and Insertion type sensors are available. New designed using advanced chip and low-voltage broadband pulse transmission, ensure flow meter with high accuracy and repeatability for long term operation.
Features:
(1)High Precise Bi-directional Measurement(Highly Dynamic Flow Measurement);
(2)Highly Cost Effective;–Simplified installation;
(3)Virtually maintenance free;–No process shut-downs;
(4)Cost advantage over magnetic flow meter;

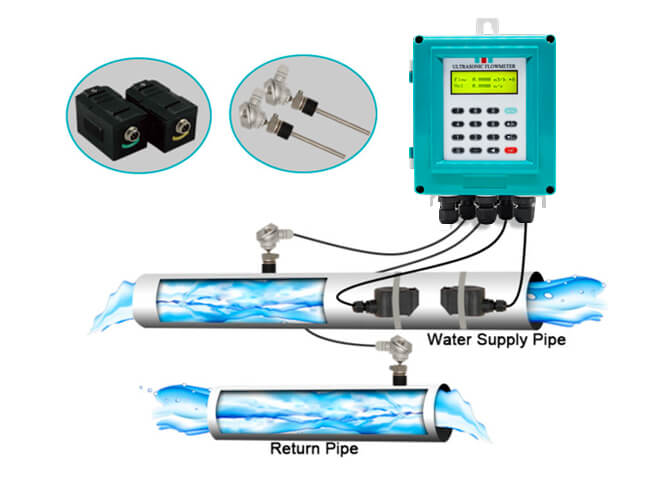

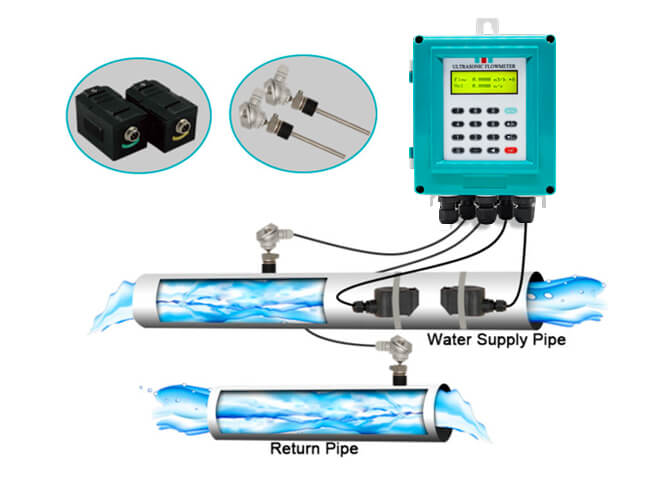

(5)Heat Measurement Available; Clamp on type and insert type temperature transducers are optional Energy units: Giga joule, Kilocalorie, KWH, BTU are optional;
Advantages:
(1)Comparing with other traditional flow meter, QT502 ultrasonic flow meter has distinctive features such as high precision, high reliability and high capability.
(2)QT502 ultrasonic flow meter adopt user-friendly menu design. British and metric measurement units are available.
(3)Support to check total flow for the last 64days and months as well as for the last 6 years.
(4)With SD card function optional, ultrasonic flow meter could achieve data storage for analysis.
Installation:
The first condition for ultrasonic flow meter is the pipe must be full of liquid, the bubbles will greatly influence the accuracy of the measurement, please avoid the following installation positions:
Technical Data:
Wall mounted ultrasonic flow meter dimension:
Wall mounted ultrasonic flow meter parameters:
| Size | DN25-DN1200mm (1”-48”) Under 1” could be specially make as an option |
| Accuracy | ±1% of measured value |
| Flow Range | ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s) |
| Fluid | Single medium liquid |
| Pipe Material | Carbon steel, stainless steel, PVC and other compact material pipe |
| Power Supply | 10~36VDC/1A |
| Outputs | Analog output: 4~20mA, max load 750Ω Pulse output: 0~10KHz |
| Communication | RS485 |
| Temperature | Transmitter: -14℉~140℉(-20℃~60℃) Transducer: -40℉~176℉(-40℃~80℃,standard) -40℉~176℉(-40℃~130℃,special) |
| Humidity | Up to 99% RH,non-condensing |
| Protection | Transmitter: PC/ABS, IP65 Transducer: ABS, IP68 |
| Cable | 9m (standard), Longer cable available |
Flow Meter project – Pakistan
Portable ultrasonic flow meter is used in temporary on-site measurement of different pipelines throughout the project.
Application
Widely used for water supply, non conductive liquids such as distilled water, food oil, light oil, boiler fuel oil engine for diesel measurement, and air conditioner system to measure the flow & heat, food and beverage, pharmaceuticals, ballast water, fuel consumption and other processes on-board ships, etc.
