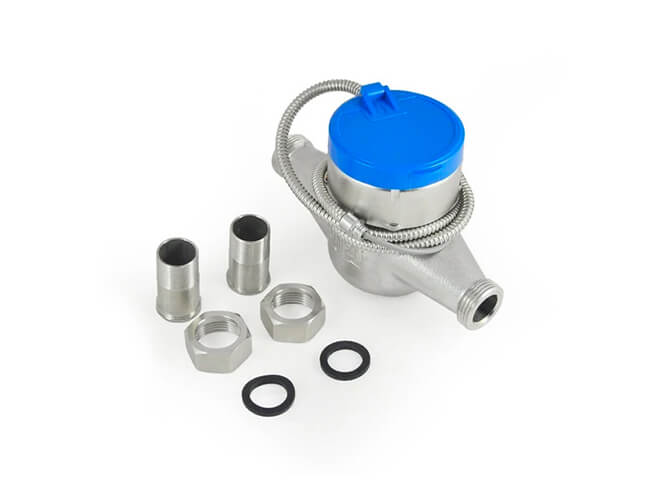

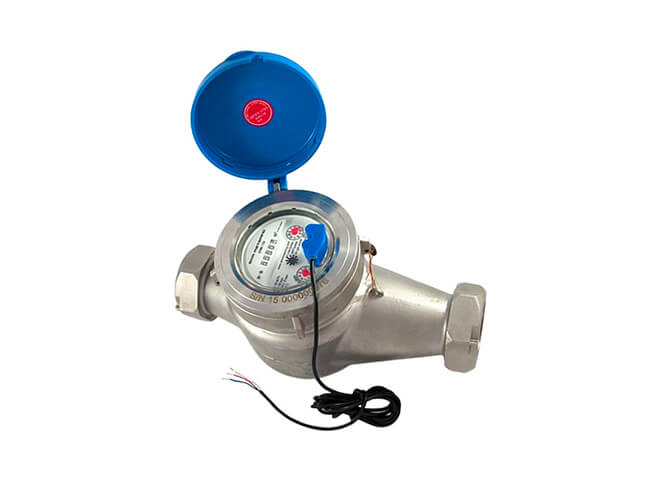

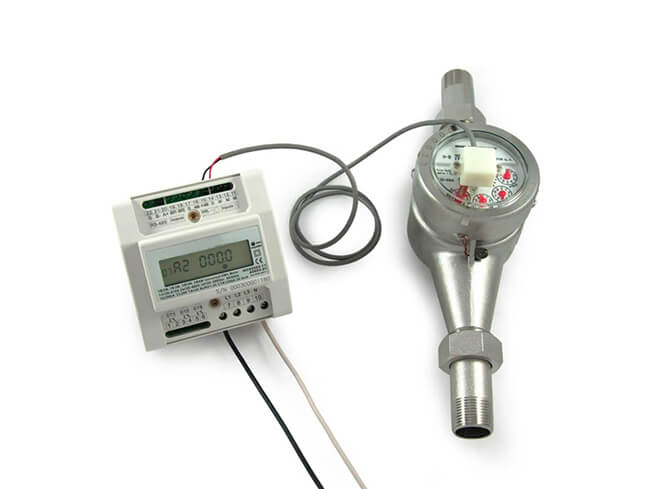

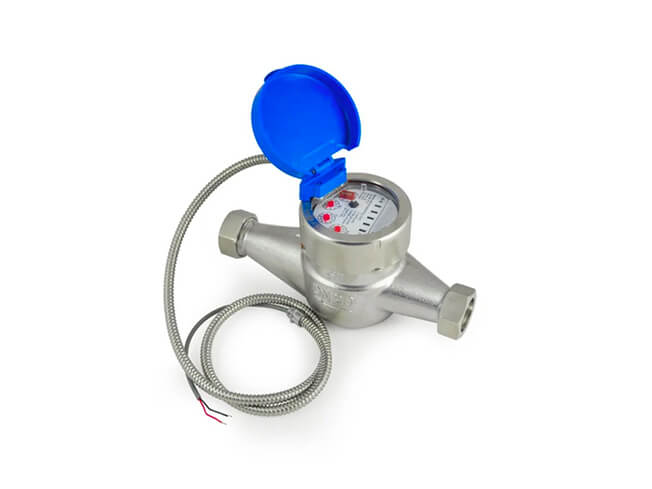

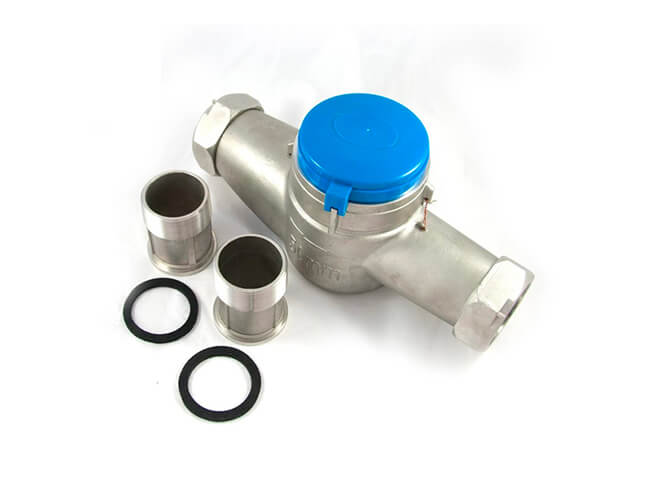

Stainless steel threaded water meter
Size:15~40mm
Pressure Rating: PN10/16
Material: Stainless steel
Design Standard:Standards Compliance
Inspection Standard:Technical data conform to international standard lSO 406
Application medium:Water
Application Temperature:-30 °C~90°C
Applied projects:Water Treatment
Characteristic
Service conditions
WESDOM flow meters are in high quality, from raw meter to final inspection, there is a strict quality control system. The flow maters and water meters WESDOM provide are all in high accuracy!
Main technical parameters:
| DN | Flow range
Q3/Q1 |
Q4 | Q3 | Q2 | Q1 | Start flow | Min reading | Max reading |
| M3/h | L/h | M3 | ||||||
| 15 | 80 | 3.125 | 2.5 | 50 | 31.25 | 6 | 0.0001 | 99999 |
| 160 | 25 | 15.625 | 5 | |||||
| 20 | 80 | 5 | 4 | 80 | 50 | 10 | 0.0001 | 99999 |
| 160 | 40 | 25 | 6 | |||||
| 25 | 80 | 7.875 | 6.3 | 126 | 78.75 | 12 | 0.0001 | 99999 |
| 160 | 63 | 39.375 | 8 | |||||
| 32 | 80 | 12.5 | 10 | 200 | 125 | 14 | 0.0001 | 99999 |
| 160 | 100 | 62.5 | 10 | |||||
| 40 | 80 | 20 | 16 | 320 | 200 | 40 | 0.0001 | 99999 |
| 160 | 160 | 100 | 35 | |||||
Philippines Water Treatment Project
Main products:

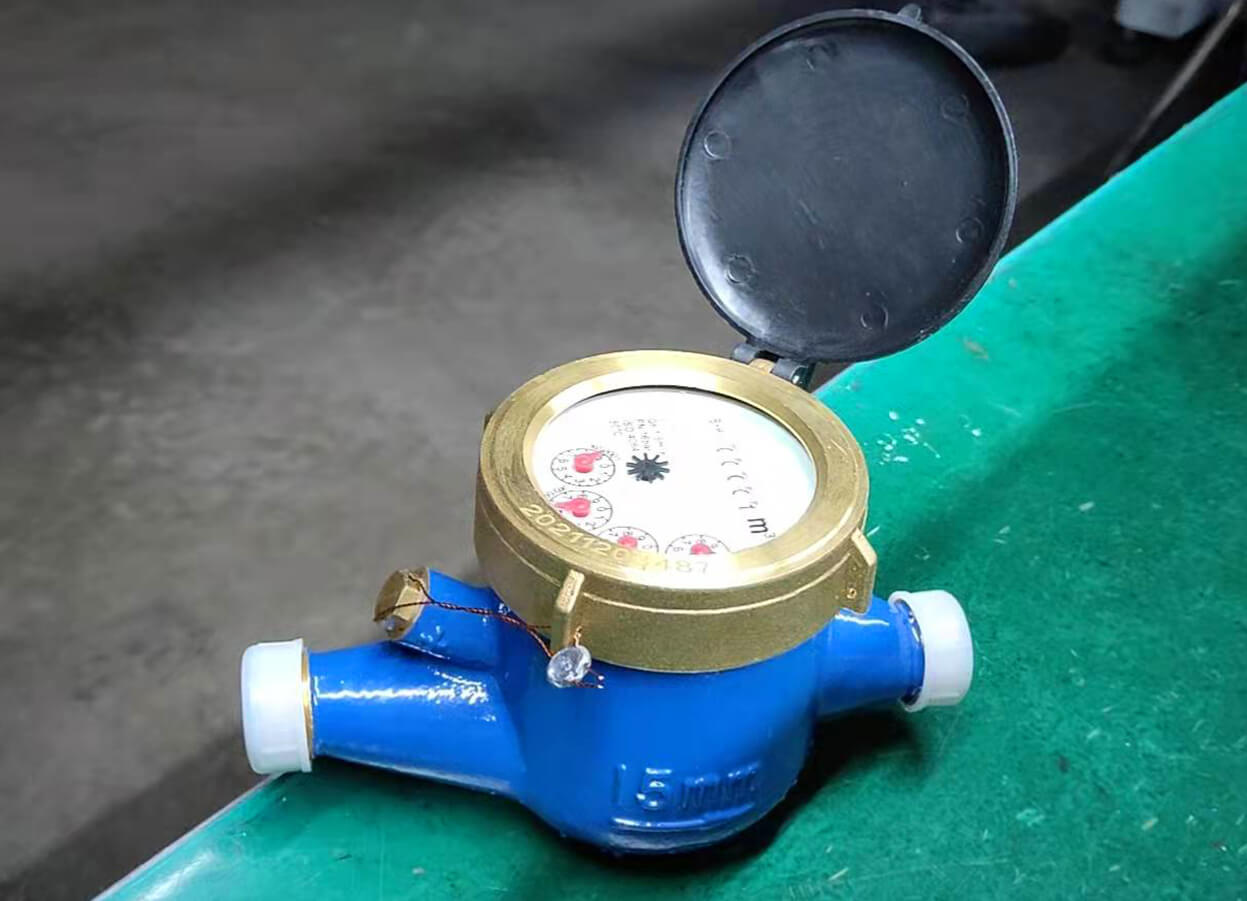

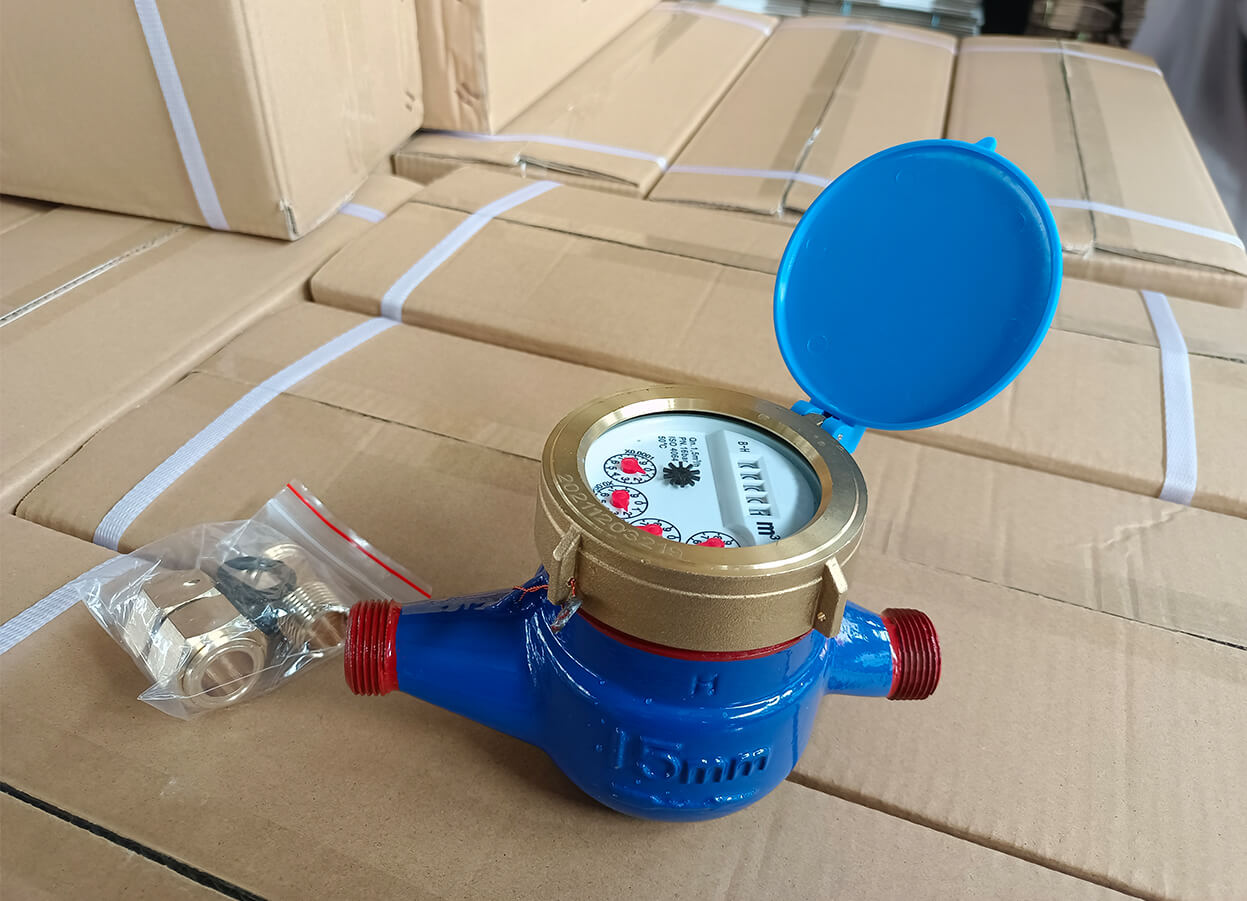

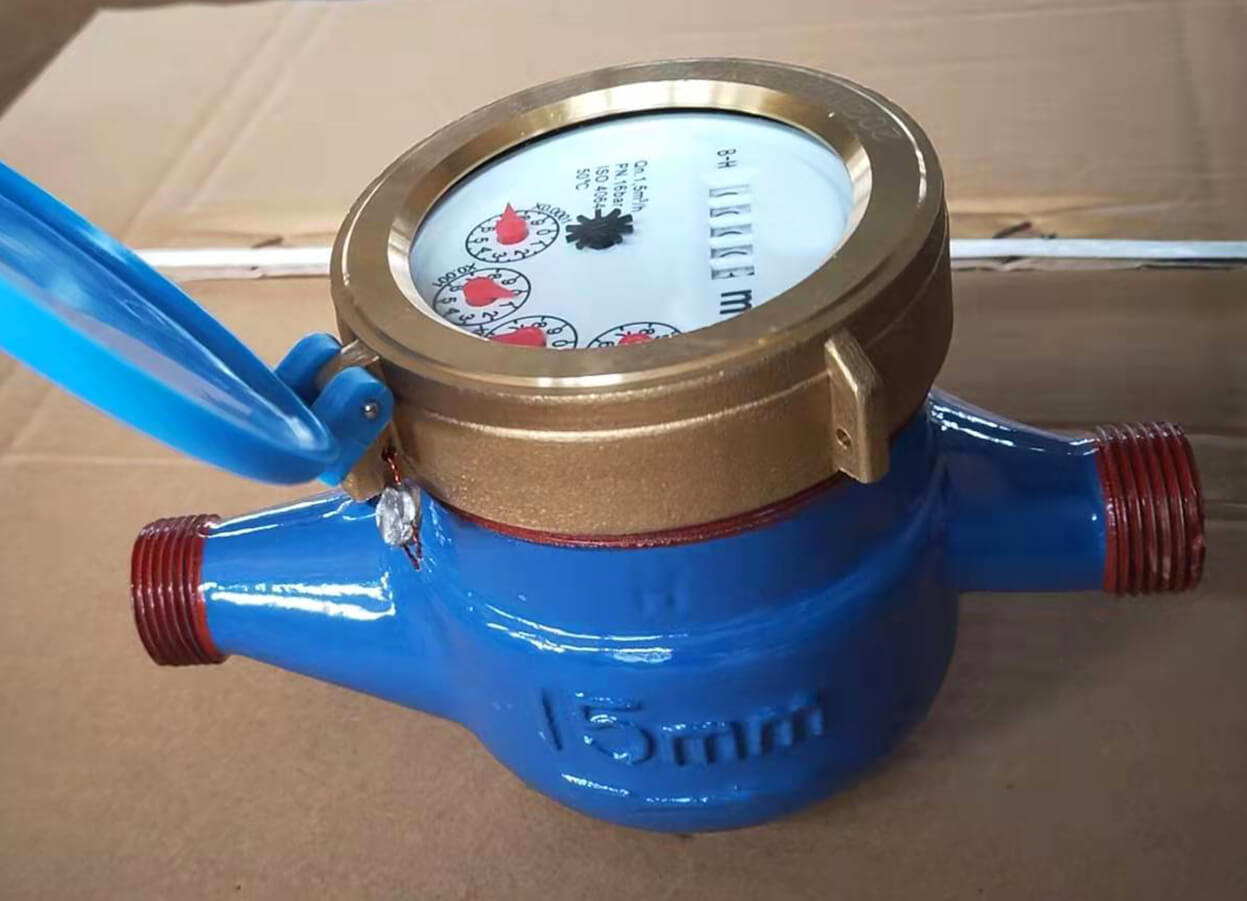

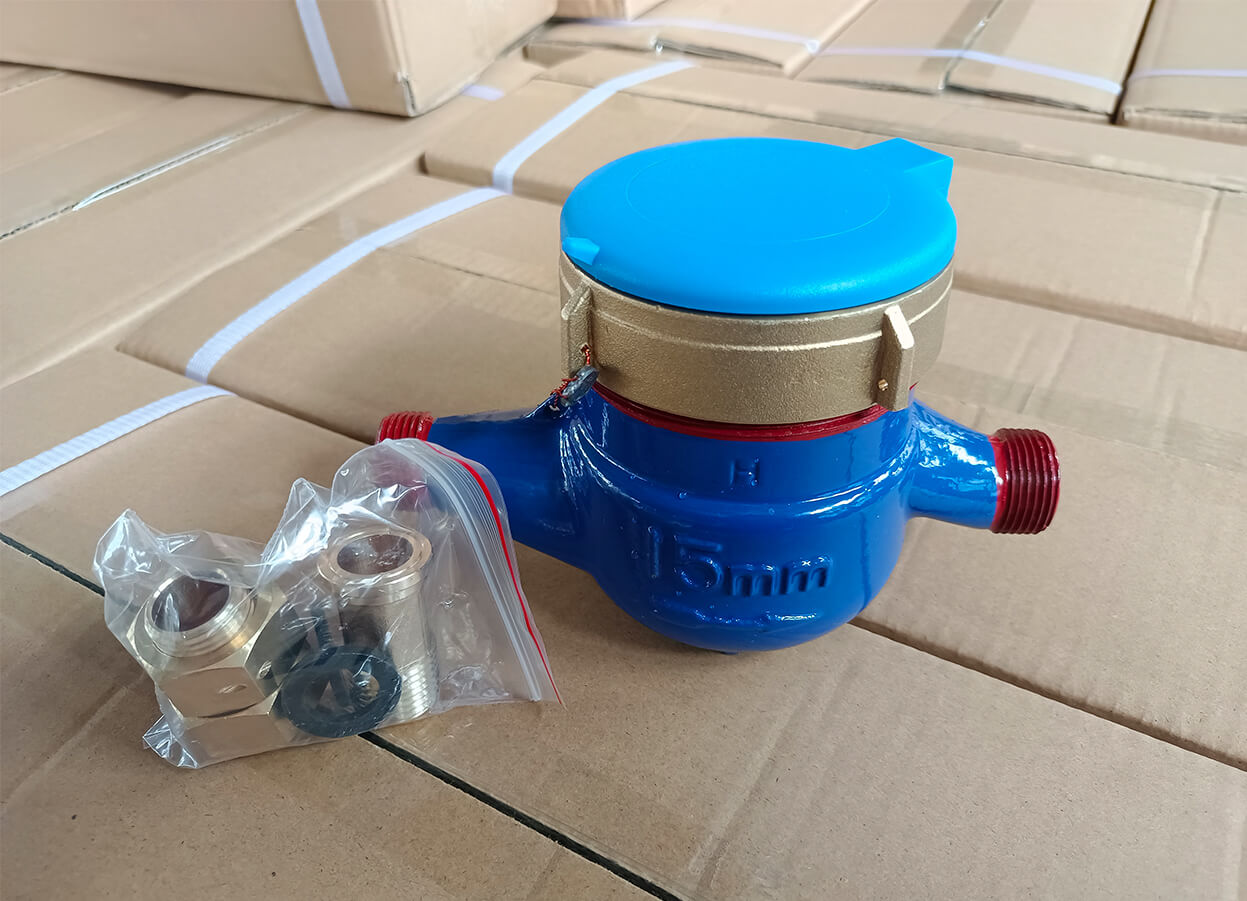

LXSG DN15 cast iron & brass thread water meter
Project description:
WESDOM water meter is applied to the Philippine water treatment project. WESDOM’s considerate service and high-quality products have won highly praise from customers and established a long-term cooperative relationship with us!
Characteristic
–The structure is simple.
–Easy to manufacture and maintain, low cost.
–Durable, low water quality requirements.
–The error is easy to adjust.
–The flow ratio is relatively large.
–The requirements for the straight pipe section are low.
Service conditions
–The water pressure shall not be greater than 1.0MPa.
–The cold water meter will not exceed 30 degrees.
–Hot water not exceeding 90C meters.
