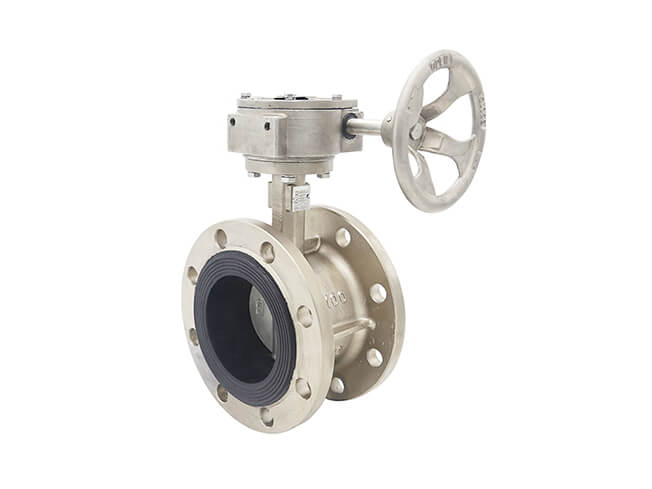

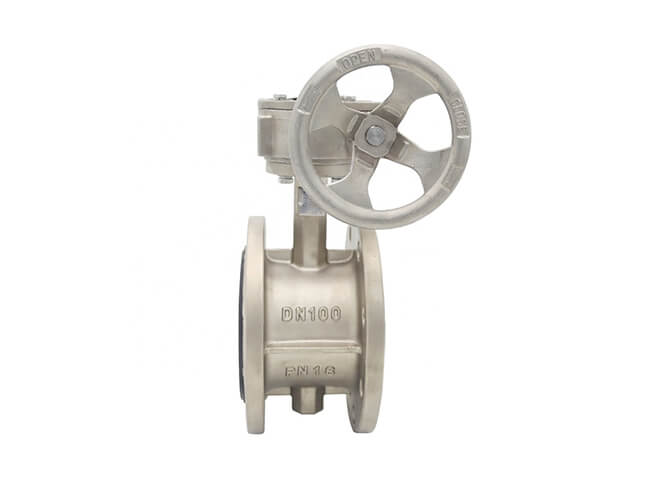

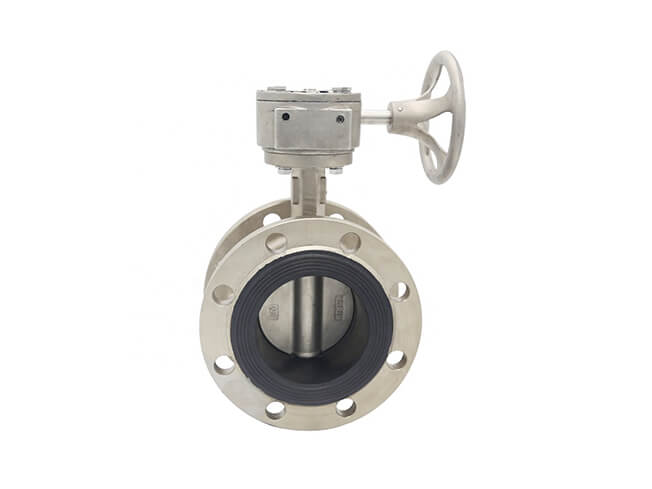

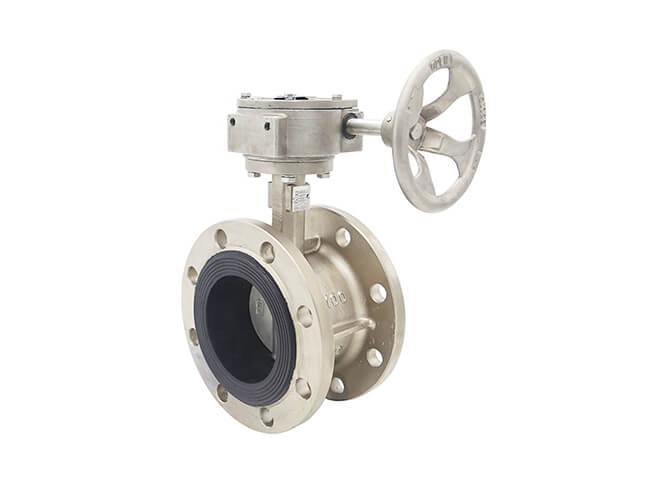

Stainless Steel Flanged Butterfly Valve
Size:DN50-3000
Pressure Rating:PN10, PN16, CL150, JIS 5K/10K
Material:SS304, SS316
Design Standard: EN 593, MSS SP67, API 609, BS5155
Inspection Standard: API 598, ISO 5208, EN 12266
Application medium:water, oil and gas
Application Temperature:-10 °C to 150°C
Applied projects:Petroleum/Electricity/Metallurgy/Water/Sewage/Energy
/Construction
| Features |
| No any leakage at the contact surface of rubber and the body’s inner owing to the rubber is vulcanized at the in-side of body |
| Firm rubber liner without moving and rising can provide with high reliability in running operation of ten thousands circles |
| Reasonable bubble-less sealing design between rubber and disc can give a small torque needs, high sealing pressure |
| Adopts flange design with good centering capacity, this valve can be used at the end of piping, and pipe at upper or lower reaches can be removed in repairing |
Standard test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature.
It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
| SIZE | A | B | C | L | ANSI 150B | DIN PN 10 | DIN PN 16 | JIS 10K | ISO 5211 | Top Flange | |||||||
| mm | in | øK | N-ød | øK | N-ød | øK | N-ød | øK | N-ød | øD | øD1 | N-øG | |||||
| 40 | 1.5″ | 67 | 141 | 32 | 33 | 98.5 | 4-ø16 | 110 | 4-ø18 | 110 | 4-ø18 | 105 | 4-ø19 | 65 | 50 | 4-ø8 | F05 |
| 50 | 2″ | 67 | 141 | 32 | 43 | 120.6 | 4-ø19 | 125 | 4-ø18 | 125 | 4-ø18 | 120 | 4-ø19 | 65 | 50 | 4-ø8 | F05 |
| 65 | 2½” | 75 | 151 | 32 | 46 | 139.7 | 4-ø19 | 145 | 4-ø18 | 145 | 4-ø18 | 140 | 4-ø19 | 65 | 50 | 4-ø8 | F05 |
| 80 | 3″ | 95 | 160 | 32 | 46 | 152.4 | 4-ø19 | 160 | 8-ø18 | 160 | 8-ø18 | 150 | 8-ø19 | 65 | 50 | 4-ø8 | F05 |
| 100 | 4″ | 111 | 180 | 32 | 52 | 190.5 | 8-ø19 | 180 | 8-ø18 | 180 | 8-ø18 | 175 | 8-ø19 | 90 | 70 | 4-ø10 | F07 |
| 125 | 5″ | 129 | 193 | 32 | 56 | 215.9 | 8-ø22.4 | 210 | 8-ø18 | 210 | 8-ø18 | 210 | 8-ø23 | 90 | 70 | 4-ø10 | F07 |
| 150 | 6″ | 142 | 207 | 32 | 56 | 241.3 | 8-ø22.4 | 240 | 8-ø22 | 240 | 8-ø22 | 240 | 8-ø23 | 90 | 70 | 4-ø10 | F07 |
| 200 | 8″ | 170 | 240 | 45 | 60 | 298.4 | 8-ø22.4 | 295 | 8-ø22 | 295 | 12-ø22 | 290 | 12-ø23 | 125 | 102 | 4-ø12 | F10 |
| 250 | 10″ | 206 | 270 | 45 | 68 | 361.9 | 12-ø25.4 | 350 | 12-ø22 | 355 | 12-ø26 | 355 | 12-ø25 | 125 | 102 | 4-ø12 | F10 |
| 300 | 12″ | 238 | 316 | 45 | 78 | 431.8 | 12-ø25.4 | 400 | 12-ø22 | 410 | 12-ø26 | 400 | 16-ø25 | 125 | 102 | 4-ø12 | F10 |
| 350 | 14″ | 267 | 368 | 45 | 78 | 476.2 | 12-ø28.4 | 460 | 16-ø22 | 470 | 16-ø26 | 445 | 16-ø25 | 125 | 102 | 4-ø12 | F10 |
| 400 | 16″ | 298 | 400 | 51 | 86 | 539.7 | 16-ø28.4 | 515 | 12-ø26 | 525 | 16-ø30 | 510 | 16-ø27 | 175 | 140 | 4-ø18 | F14 |
| 450 | 18″ | 318 | 422 | 51 | 105 | 577.8 | 16-ø31.8 | 565 | 20-ø26 | 585 | 20-ø30 | 565 | 20-ø27 | 175 | 140 | 4-ø18 | F14 |
| 500 | 20″ | 349 | 479 | 57 | 130 | 635 | 20-ø31.8 | 620 | 20-ø26 | 650 | 20-ø33 | 620 | 20-ø27 | 175 | 140 | 4-ø18 | F14 |
| 600 | 24″ | 410 | 562 | 70 | 152 | 749.3 | 20-ø35.1 | 725 | 20-ø30 | 770 | 20-ø36 | 730 | 24-ø33 | 210 | 165 | 4-ø22 | F16 |
Material:
| Body | WCB/CF8/CF8M |
| Disc | WCB/CF8/CF8M |
| Bonnet | Ductile iron/WCB/CF8/CF8M |
| Seat | PTFE/ Metal |
| Shaft | SS420/CF8/CF8M |
| Packing | Flexible graphite |
| O ring | Rubber |
Famous Textile Factory Project in Pakistan
Main products:
Flow meters and SS valves
Project description:
This is a relatively special case. Because the customer know less about valves, but the demand is very large. So WESDOM assigns a professional team (salesmen and engineers from the International Trade Department) to conduct on-site inspections and give customer some Pertinent suggestions, and this customer are very shocked and moved by our service, and have established a long-term cooperative relationship with us without hesitation;
Client feedback:
The customer said: “Thank you very much for the on-the-spot inspection and very professional guidance of the WESDOM team.” He was really shocked by the warm and considerate service and professional technical guidance of WESDOM. WESDOM is trustworthy!
Project pictures:
Application
Stainless steel butterfly valves are also widely used as regulating and intercepting devices on the pipelines of SO2, steam, air, gas, ammonia, CO2 gas, oil, water, brine, lye, seawater, nitric acid, hydrochloric acid, sulphuric acid, phosphoric acid and other media in the chemical, petrochemical, smelting, pharmaceutical and food industries.
