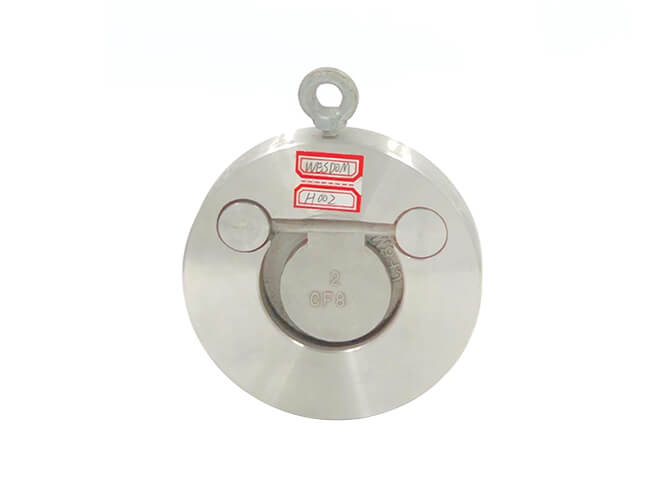

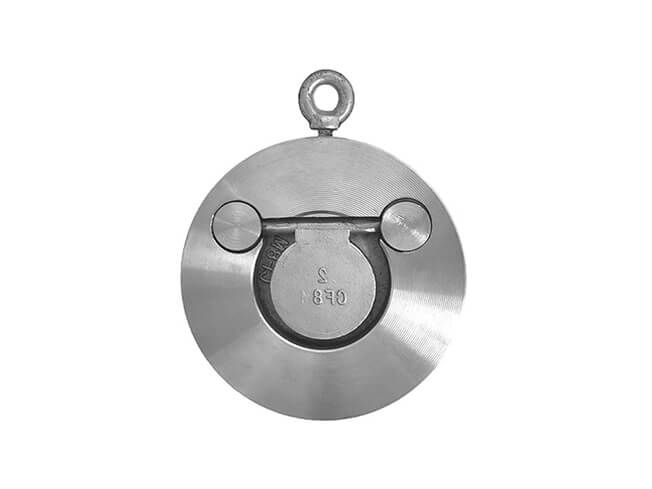

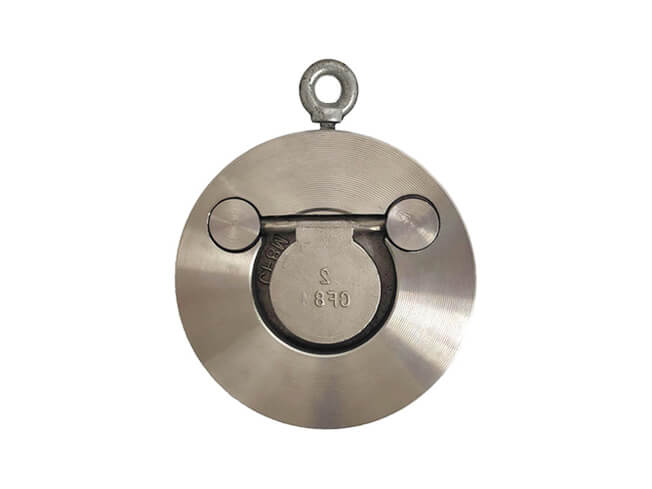

Single Plate Check Valve

Single Plate Check Valve

Size:2”~20”

Pressure Rating:PN10~PN40

Material:SS304, SS316

Design Standard: Appropriate standard

Inspection Standard: Appropriate standard

Application medium:Water, Oil, Chemical

Application Temperature:-20~400 °C

Applied projects:Petroleum，Electricity，Metallurgy，Water，Sewage，Energy，Construction

 CATALOGUE DOWNLOAD

Product details

Product overview:

The wafer check valve is composed of valve body, valve disc, valve stem, spring and other parts. It adopts wafer connection. Due to the short closing stroke of the valve disc and spring loading, the water hammer phenomenon can be significantly reduced. This valve is mainly suitable for urban, industrial and high-rise building water supply and drainage pipe networks. Because its structure length is shorter than general check valves, it is most suitable for places with installation restrictions.

We are professional on valves, fittings and water meters, own 5 factories in China. In addition to valves, pipe fittings and water meters, WESDOM is also committed to the development of piping relating products in order to provide customers with more convenient services. Now WESDOM is not only a valve manufacturer, but also an industrial piping solution provider.

single check valve

Materials list:

1	Body	C.S. / S.S.
2	Seat	NBR/EPDM/Viton/PTFE
3	Disc	C.S. / S.S.
4	“O” Ring	NBR/EPDM/Viton/PTFE
5	Eye Bolt	C.S.
6	Washer	C.S. / S.S.
7	Screw	C.S. / S.S.

SIZE	C	D				L
SIZE	C	PN6	PN10	PN16	PN25	L
1″	20	82	82	82	82	14
1.5″	22	88	95	95	95	14
2″	32	98	109	109	109	14
2.5″	40	118	129	129	129	14
3″	54	134	144	144	144	14
4″	70	154	164	165	170	18
5″	92	184	195	195	198	18
6″	112	209	220	220	228	20
8″	154	264	275	275	288	22
10″	200	319	330	330	343	26
12″	240	375	380	380	403	32
14″	270	425	440	440	460	38
16″	310	475	490	490	517	44
18″	360	530	540	540	567	44
20″	405	580	595	595	627	56
24″	485	681	698	698	737	62
