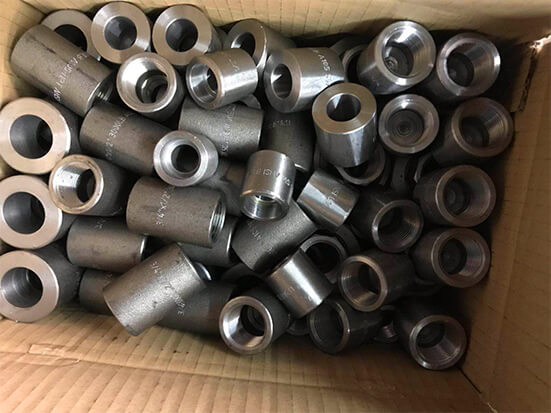

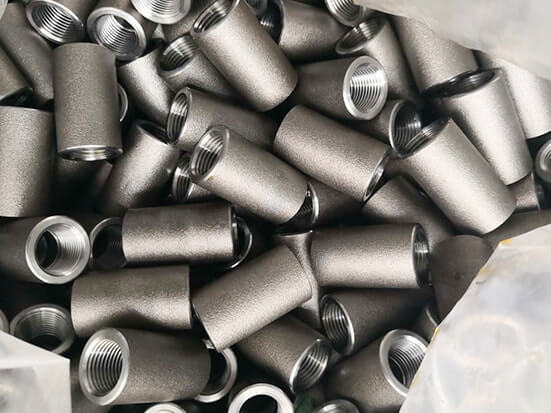

Forged steel pipe fittings
Size: 1/2-2" (DN15-DN50)
Pressure Rating: 3000LB
Material: Forged steel
Design Standard: ASME/ANSI B16.11, JIS B2316, MSS SP-83, 95, 97, BS 3799
Application medium: Water, Oil,Gas
Application Temperature: 0-350℃
Applied projects: Petroleum, chemical, power plant, shipbuilding, metallurgy, nuclear power
Forged threaded fittings are available in various grades of stainless steel in different technical specifications.
These stainless steel forged threaded fittings encompass excellent mechanical properties and high thermo-electrical conductivity. In addition to this, these SS forged threaded fittings are highly resistant to corrosive environment.
Features:
Forged Fittings & Socket weld fittings of high quality are manufactured by Ritinox Overseas. Forged fittings have special quality finishing and duress for long life, high pressure and zero defects.

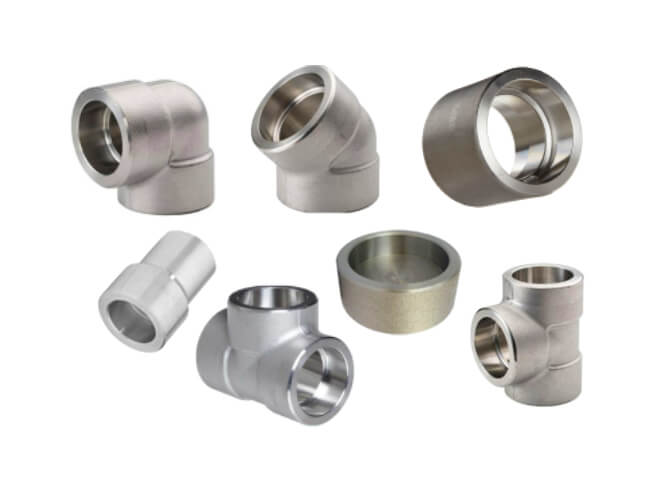

Forged Fittings are offered in various shapes such as , tees , elbows, cross , nipples etc. Precision finishing threading is available in NPT, BSPT & BSPP as per the international standards.
Forged Fittings are subject to high pressure for critical applications and can be manufactured in various grades of Stainless Steel, Duplex Steel, High Nickel Alloys, Alloy Steel and Titanium.
We manufacture forged fittings in threaded (NPT, BSP, BSPT) as well as socket weld types.
High pressure socket weld forged pipe fittings:
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |

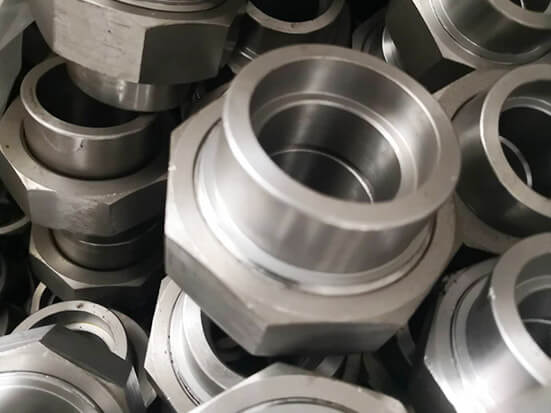

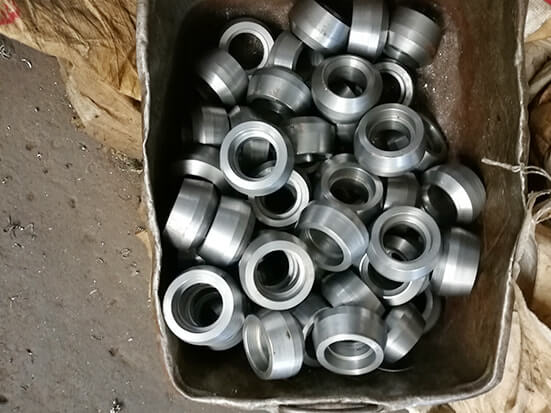

| Socket Weld Forged Fittings Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| Threaded Forged Fittings Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
Forged pipe fittings manufacturing standards:
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
| ASME B16.11 | Socket Welding and Threaded Forged Fittings |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Forged stainless steel fittings – threaded and socket weld:
Stainless Steel – ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1
Forged carbon steel fittings – threaded and socket weld:
Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1
Jianzhi forged steel pipe fittings to the Philippines！
Main products：
Socket Welding Fittings and Threaded Fittings.
Mainly contains：

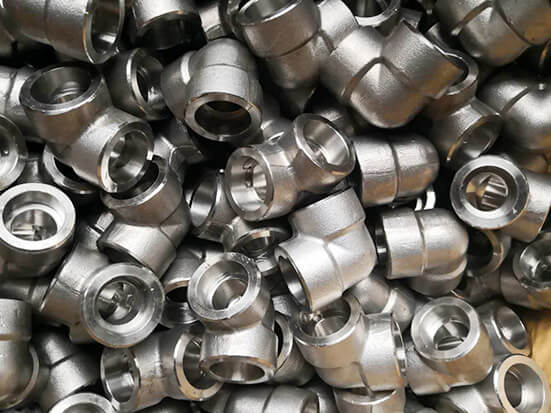

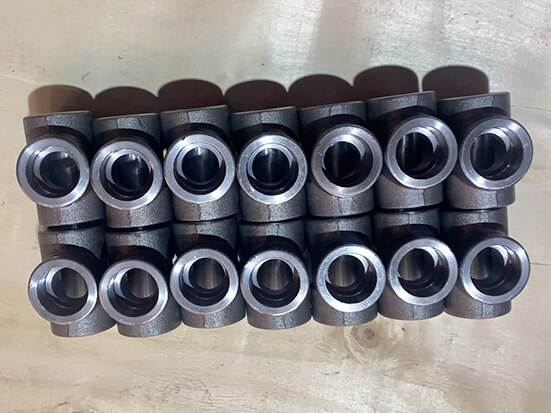

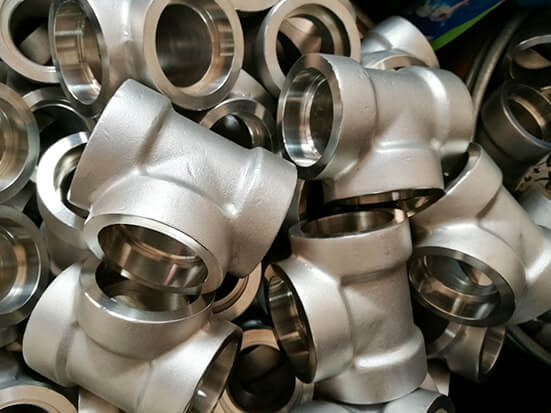

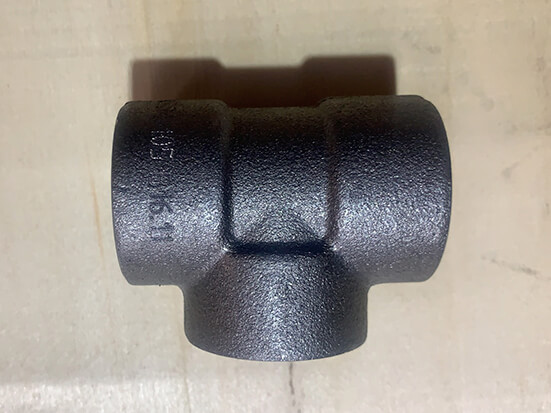

Socket Weld Elbow, Socket Weld Tee, Socket Weld Cap, Socket Weld Coupling, Socket Weld Union, etc.
